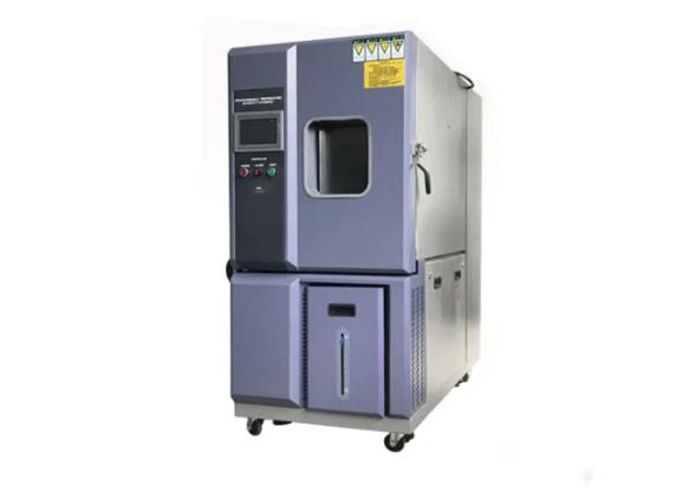

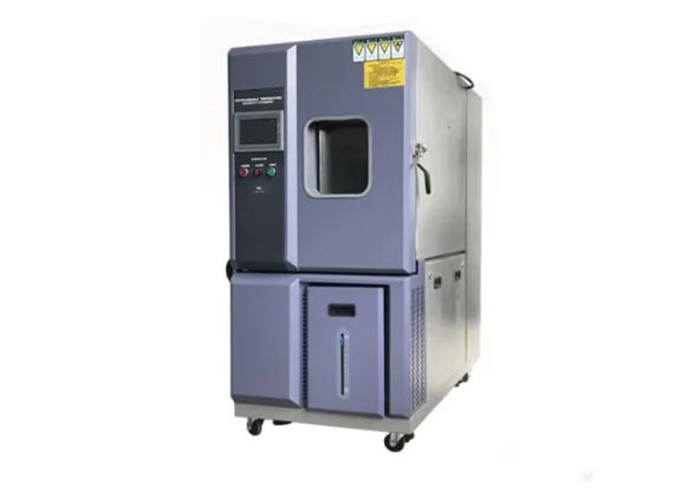

408L Constant Temperature And Humidity Chamber / Climatic Test Chamber

408L Constant Temperature And Humidity Chamber / Climatic Test Chamber

  • 408L Constant Temperature And Humidity Chamber / Climatic Test Chamber
  • 408L Constant Temperature And Humidity Chamber / Climatic Test Chamber
408L Constant Temperature And Humidity Chamber / Climatic Test Chamber
Product Details:
Place of Origin: Guangdong, China
Certification: CE Complied
Model Number: TZ-HW408
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Wooden case outside with pallet, in total 1-2CBM
Delivery Time: 5-7 working days
Payment Terms: L/C, T/T, Western Union, , MoneyGram
Supply Ability: 500 sets/ month
Contact Now
Detailed Product Description
Product Name: Constant Temperature And Humidity Chamber Cooling Rate: 0.7-1°C/min
Studio Size: 600*800*850mm Machine Size: 1100*1350*1750mm
Volume: 408L Warranty Period: 12 Months
High Light:

constant temperature humidity chamber

,

temp humidity chamber

408L Constant Temperature And Humidity Chamber / Climatic Test Chamber


Constant Temperature And Humidity Chamber Application :

climate test chamber
The High and Low temperature chamber test machine simulates different environmental condition. It's appropriate for testing material performance, such as resist heat, resist dryresist humidity and resist cold. That can define performance of material.


Constant Temperature And Humidity Chamber Features



1. International brand imported compressor and internationally renowned refrigeration accessories are adopted to ensure stable performance of the refrigeration system.
2. The inner box is made of SUS304# mirror stainless steel
3. The outer box adopts steel baking paint, which is beautiful and generous
4. Programmable touch temperature controller.
5. Multiple safety protection: refrigerant high pressure protection, compressor overload protection, over current protection, over temperature protection, leakage protection.
6. Brand new and perfect modeling design, high quality appearance.Low noise design, connected to computer.






Constant Temperature And Humidity Chamber Specification & Techincal data



Model TZ-HW80 TZ-HW150 TZ-HW225 TZ-HW408 TZ-HW1000
Internal Volume(Liters) 80 150 225 408 1000
Dimension Studio size(mm) 400*400*500 500*500*600 500*600*750 600*800*850 1000*1000*1000
Machine size(mm) 900*902*1350 1005*995*1465 1050*1100*1700 1100*1350*1750 1500*1500*1950
Structure Combined structure(If the door is not wide enough, small size is available , width can be reduced by 250~300mm)
Weight(kg) Around 280 Around 280 Around 300 Around 500 Around 800
Performance Test environment conditions Test environment temperature +25°C, relative humidity≤85%, No sample in test chamber
Corresponding standard GB/T 5170.2-1996 Method for verification of basic parameters of environmental test equipment for electric and electronic products
Test Method

Completely stationary test mode for the object to be measured

This method is the first choice for testing, research and semiconductor screening of electronic components

Parameters Control method Balanced temperature and humidity control mode(BTHC) PID Intelligent Adjustment
Temperature range -40°C~+150°C
Humidity range 20%~98%R.H
Heating rate 1-1.5°C/min
Cooling rate 0.7-1°C/min
Uniformity Temperature: ±1.5°C Humidity: ±2.5%R.H
Fluctuation Temperature: ±0.5°C Humidity: ±2.0%R.H
Temperature Calibration point +23°C and +80°C






-----Package details-----

1. External wooden case with tray
2. The total volume is about 3-6 square
3. Suitable for export, loading and unloading
Packaging details are as follows:



408L Constant Temperature And Humidity Chamber / Climatic Test Chamber 0
