Product Details:
Place of Origin: Guangdong, China
Brand Name: Tianzhuo
Certification: CE Complied
Model Number: TZ-HW408
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Wooden case outside with pallet, in total 1-2CBM
Delivery Time: 5-7 working days
Payment Terms: L/C, T/T, Western Union, , MoneyGram
Supply Ability: 500 sets/ month
Contact Now
Detailed Product Description
Name: Temperature Humidity Test Chamber  Model: TZ-HW408
Temperature Range: -40ºC~+150ºC -70ºC~+150ºC Size: Customized
Protection: Multiple Safety Protection Feature: Durable
High Light:

laboratory humidity chamber

,

temp humidity chamber

Customized Climatic Temperature Humidity Test Chamber Multiple Safety Protection



Temperature Humidity Test Chamber INTRODUCTION

This product is suitable for testing various products or materials, household electrical appliances, instruments, components and other electrical, electronic, automobile, motorcycle products under high temperature, low temperature, humidity environment conditions, for various scientific research institutions and factories and mines center test room to do reliability test.



Temperature Humidity Test Chamber ADVANTAGES

1.The product has excellent performance and durability with reasonable price,can be customized according to the special needs of customers.
2. Independent product design, production, production in strict accordance with the process requirements, beautiful appearance.

3. Famous brands are adopted for key components to guarantee the performance and quality.

Temperature Humidity Test Chamber FEATURE

1. International brand compressor and internationally renowned refrigeration accessories are adopted to ensure stable performance of the refrigeration system.
2. The inner box is made of SUS304# high-brightness mirror stainless steel.
3. The outer box adopts anti-rust treatment cold-rolled steel plate (spraying), with reasonable structure and elegant appearance.
4. Programmable touch controller
5. Multiple safety protection: refrigerant high pressure protection, compressor overload protection, over current protection, over temperature protection, leakage protection.
6. Brand new and perfect modeling design, high quality appearance.Low noise design, can be connected to computer.
7. The glass window is equipped with high-brightness fluorescent lamp, allowing the user to observe the conditions inside the test chamber at any time.

Temperature Humidity Test Chamber TECHNICAL PARAMETERS



Model TZ-HW408 Temperature Humidity Test Chamber
Internal Volume(L) 408L
Dimensions Studio Size(mm) 600*800*850
Machine Size(mm) 1100*1350*1750
Structure Combined structure (If the door is not wide enough, small size is available, width reduced by 250 ~ 300mm)
Weight (Kg) About 500
Performance Test Environment Conditions Environment temperature+25ºC,Relative humidity≤85%,No sample in test chamber.
Corresponding Standard

GB/T 5170.2-1996 "Method for verification of basic parameters of

environmental test equipment for electric and electronic products"

Test Method Completely stationary test mode for the object to be measured.
This method is the first choice for testing, research and semiconductor
screening of electronic components.
Parameters Control Methods Balanced temperature and humidity control mode(BTHC) PID Intelligent Adjustment
Temperature Range -40ºC~+150ºC -70ºC~+150ºC
Humidity Range 20%~98%R.H (0%~100% R.H can be customized)
Heating Rate 1-2ºC/min (Linear Adjustment 3-5℃/min can be Customized)
Cooling Rate 0.7ºC-1ºC/min (Linear Adjustment 3-5℃/min can be Customized)
Uniformity Temperature: ±1.5ºC Humidity: ±2.5%R.H
Fluctuation Temperature: ±0.5ºC Humidity : ±2%R.H

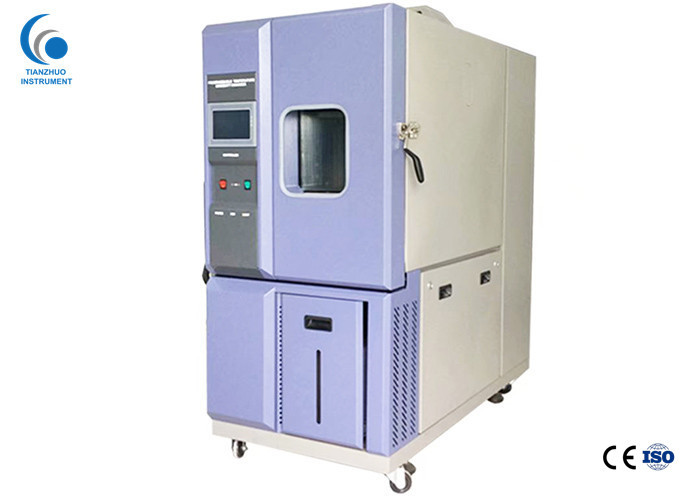

Temperature Humidity Test Chamber PHOTOS


Customized Climatic Temperature Humidity Test Chamber Multiple Safety Protection 0
