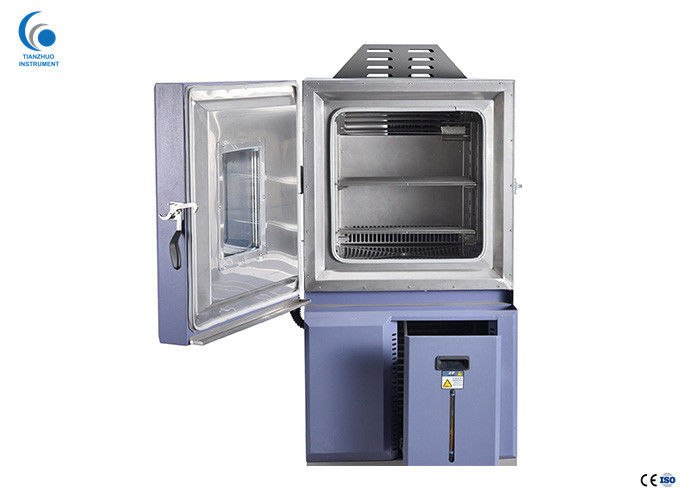

Energy Saving Temperature Humidity Test Chamber For Electrical Appliances

Energy Saving Temperature Humidity Test Chamber For Electrical Appliances

  • Energy Saving Temperature Humidity Test Chamber For Electrical Appliances
Energy Saving Temperature Humidity Test Chamber For Electrical Appliances
Product Details:
Place of Origin: Guangdong, China
Certification: CE Complied
Model Number: TZ-HW150
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Wooden case outside with pallet, in total 1-2CBM
Delivery Time: 5-7 working days
Payment Terms: L/C, T/T, Western Union, , MoneyGram
Supply Ability: 500 sets/ month
Contact Now
Detailed Product Description
Advantages: Energy Saving Keyword: Temperature Humidity Test Chamber
Model: TZ-HW150 Application: Electrical Appliances
Studio Size(mm): 500*500*600 Type: Laboratory Humidity Chamber
High Light:

constant temperature humidity chamber

,

laboratory humidity chamber

Energy Saving Temperature Humidity Test Chamber For Electrical Appliances​



Temperature Humidity Test Chamber Features:



1. Energy Saving .

2. Easy operation, available for both fixed value test and programmable test.

3. Available for customized design and provide various options to meet different test requirements.

4. RS485 and RJ45 communications, available to computer remote control.

5. Fog-free observation window and interior light to view product under test.

6. Programmable



Temperature Humidity Test Chamber ADVANTAGES


1. Famous brands are adopted for key components to guarantee the performance and quality.

2. We company established a sound quality assurance system and complete after-sales service guarantee system.
3, One-year free warranty period .


Temperature Humidity Test Chamber TECHNICAL PARAMETERS



Model TZ-HW150
Internal Volume(L) 150L
Dimensions Studio Size(mm) 500*500*600
Standard Machine Size(mm) 1005*995*1465
Small Vertical External Size(mm) 1100*850*1750
Structure Combined structure (If the door is not wide enough, small size is available, width reduced by 250 ~ 300mm)
Standard Weight (Kg) About 280
Performance Test Environment Conditions Environment temperature+25ºC,Relative humidity≤85%,No sample in test chamber.
Corresponding Standard

GB/T 5170.2-1996 "Method for verification of basic parameters of

environmental test equipment for electric and electronic products"

Test Method Completely stationary test mode for the object to be measured.
This method is the first choice for testing, research and semiconductor
screening of electronic components.
Parameters Control Methods Balanced temperature and humidity control mode(BTHC) PID Intelligent Adjustment
Temperature Range -40ºC~+150ºC -70ºC~+150ºC
Humidity Range 20%~98%R.H (0%~100% R.H can be customized)
Heating Rate 1-2ºC/min (Linear Adjustment 3-5℃/min can be Customized)
Cooling Rate 0.7ºC-1ºC/min (Linear Adjustment 3-5℃/min can be Customized)
Uniformity Temperature: ±1.5ºC Humidity: ±2.5%R.H
Fluctuation Temperature: ±0.5ºC Humidity : ±2%R.H

Temperature

Calibration

Point

+23 °C and +80 °C



Why choose us?



1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.

2. Excellent After sale Service:
12 months warranty. Besides, we can help you to repair your problem controller freely, Free replacement parts, even it's not from our factory's. What you need to do is to send us the controller.We can offer operation video and English operation muanual. We can provide video-con
