Product Details:
Place of Origin: Guangdong, China
Certification: CE Complied
Model Number: TZ-HW225
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden case outside with pallet, in total 1-2CBM
Delivery Time: 5-7 working days
Payment Terms: L/C, T/T, Western Union, , MoneyGram
Supply Ability: 500 sets/ month
Contact Now
Detailed Product Description
Name: Temperature Humidity Test Chamber Feature: Environmental Friendly
Temperature    Calibration Point: +23 °C And +80 °C Studio Size(mm): 500*600*750
Standard Machine Size(mm): 1050*1100*1700 Small Vertical External Size(mm): 1200*950*1850
High Light:

constant temperature humidity chamber

,

laboratory humidity chamber

Environmental Cooling Temperature Humidity Test Chamber Reasonable Structure



Temperature Humidity Test Chamber ADVANTAGES

1. Independent product design, production, production in strict accordance with the process requirements, beautiful appearance.

2. Famous brands are adopted for key components to guarantee the performance and quality.

3. We company established a sound quality assurance system and complete after-sales service guarantee system.


Temperature Humidity Test Chamber FEATURE

1. International brand compressor and internationally renowned refrigeration accessories are adopted to ensure stable performance of the refrigeration system.
2. The inner box is made of SUS304# high-brightness mirror stainless steel.
3. The outer box adopts anti-rust treatment cold-rolled steel plate (spraying), with reasonable structure and elegant appearance.
4. Programmable touch controller
5. Multiple safety protection: refrigerant high pressure protection, compressor overload protection, over current protection, over temperature protection, leakage protection.
6. Brand new and perfect modeling design, high quality appearance.Low noise design, can be connected to computer.

Temperature Humidity Test Chamber  PARAMETERS



Model TZ-HW225 Temperature Humidity Test Chamber
Internal Volume(L) 225L
Dimensions Studio Size(mm) 500*600*750
Standard Machine Size(mm) 1050*1100*1700
Small Vertical External Size(mm) 1200*950*1850
Structure Combined structure (If the door is not wide enough, small size is available, width reduced by 250 ~ 300mm)
Standard Weight (Kg) About 300
Performance Test Environment Conditions Environment temperature+25ºC,Relative humidity≤85%,No sample in test chamber.
Corresponding Standard

GB/T 5170.2-1996 "Method for verification of basic parameters of

environmental test equipment for electric and electronic products"

Test Method Completely stationary test mode for the object to be measured.
This method is the first choice for testing, research and semiconductor
screening of electronic components.
Parameters Control Methods Balanced temperature and humidity control mode(BTHC) PID Intelligent Adjustment
Temperature Range -40ºC~+150ºC -70ºC~+150ºC
Humidity Range 20%~98%R.H (0%~100% R.H can be customized)
Heating Rate 1-2ºC/min (Linear Adjustment 3-5℃/min can be Customized)
Cooling Rate 0.7ºC-1ºC/min (Linear Adjustment 3-5℃/min can be Customized)
Uniformity Temperature: ±1.5ºC Humidity: ±2.5%R.H
Fluctuation Temperature: ±0.5ºC Humidity : ±2%R.H

Temperature

Calibration

Point

+23 °C and +80 °C

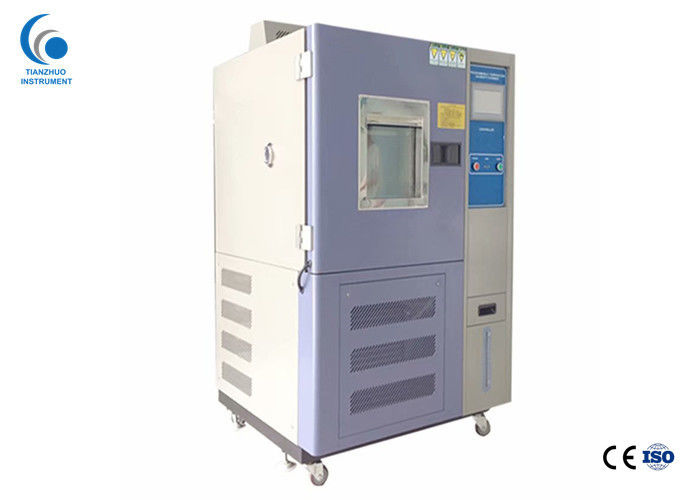

Temperature Humidity Test Chamber PHOTOS


Environmental Cooling Temperature Humidity Test Chamber Reasonable Structure 0
