Mini Temperature And Humidity Test Chamber With LCD Touch Screen Control

Mini Temperature And Humidity Test Chamber With LCD Touch Screen Control

  • Mini Temperature And Humidity Test Chamber With LCD Touch Screen Control
Mini Temperature And Humidity Test Chamber With LCD Touch Screen Control
Product Details:
Place of Origin: Guangdong, China
Certification: CE Complied
Model Number: TZ-HW1000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden case outside with pallet, in total 1-2CBM
Delivery Time: 5-7 working days
Payment Terms: L/C, T/T, Western Union, , MoneyGram
Supply Ability: 500 sets/ month
Contact Now
Detailed Product Description
Name: Temperature And Humidity Test Chamber Warranty: 12 Months
Apply For: Instruments, Components Model: TZ-HW1000
Inner Box: SUS304# Stainless Steel Control: LCD Touch Screen Control
High Light:

laboratory humidity chamber

,

temp humidity chamber

Mini Temperature And Humidity Test Chamber With LCD Touch Screen Control



Temperature And Humidity Test Chamber INTRODUCTION



Temperature And Humidity Test Chamber is a precise and durable conditioning system that able to offer quick and constant conditions from 5% to 98% R.H. +/- 0.5% and-70°C to 150°C +/-0.5°C, is widely used for the resistance test to heat, cold, dry, and humidity etc, and used for the conditioning of many kinds of samples prior to testing



Constant Temperature and Humidity test chamber is designed for testing the capability of heat-endurance, cold-endurance, dryness-endurance, and humidity-endurance, suitable for quality control of the industries of electron, electrical equipment, vehicle, metal, foodstuffs, chemistry, building materials, luggage, adhesion tape, printing, packaging, etc.



Temperature And Humidity Test Chamber FEATURE

1. International brand compressor and internationally renowned refrigeration accessories are adopted to ensure stable performance of the refrigeration system.
2. The inner box is made of SUS304# high-brightness mirror stainless steel.
3. The outer box adopts anti-rust treatment cold-rolled steel plate (spraying), with reasonable structure and elegant appearance.
4. Programmable touch controller
5. Multiple safety protection: refrigerant high pressure protection, compressor overload protection, over current protection, over temperature protection, leakage protection.
6. Brand new and perfect modeling design, high quality appearance.Low noise design, can be connected to computer.

Temperature And Humidity Test Chamber TECHNICAL PARAMETERS



Model TZ-HW1000 Temperature And Humidity Test Chamber
Internal Volume(L) 1000L
Dimensions Studio Size(mm) 1000*1000*1000
Machine Size(mm) 1500*1500*1900
Structure Combined structure (If the door is not wide enough, small size is available, width reduced by 250 ~ 300mm)
Weight (Kg) About 800
Parameters Control Methods Balanced temperature and humidity control mode(BTHC) PID Intelligent Adjustment
Temperature Range -40ºC~+150ºC -70ºC~+150ºC
Humidity Range 20%~98%R.H (0%~100% R.H can be customized)
Heating Rate 1-2ºC/min (Linear Adjustment 3-5℃/min can be Customized)
Cooling Rate 0.7ºC-1ºC/min (Linear Adjustment 3-5℃/min can be Customized)
Uniformity Temperature: ±1.5ºC Humidity: ±2.5%R.H
Fluctuation Temperature: ±0.5ºC Humidity : ±2%R.H

Temperature

Calibration

Point

+23 °C and +80 °C

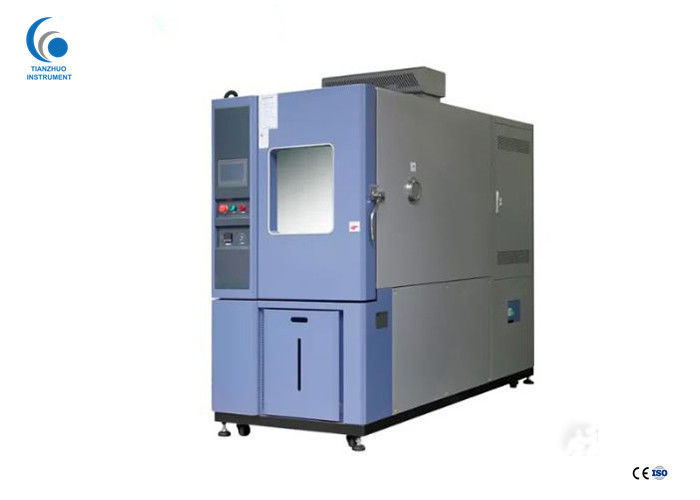

Temperature And Humidity Test Chamber PHOTOS


Mini Temperature And Humidity Test Chamber With LCD Touch Screen Control 0
