Rapid Change Temperature Humidity Test Chamber For Home Appliance

Rapid Change Temperature Humidity Test Chamber For Home Appliance

  • Rapid Change Temperature Humidity Test Chamber For Home Appliance
Rapid Change Temperature Humidity Test Chamber For Home Appliance
Product Details:
Place of Origin: Guangdong, China
Certification: CE Complied
Model Number: TZ-HW Series
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Wooden case outside with pallet, in total 1-2CBM
Delivery Time: 5-7 working days
Payment Terms: L/C, T/T, Western Union, , MoneyGram
Supply Ability: 500 sets/ month
Contact Now
Detailed Product Description
Name: Temperature Humidity Test Chamber Standard Weight (Kg): 280-800
Internal Volume(L): 80-1000 Structure: Combined Structure (If The Door Is Not Wide Enough, Small Size Is Available, Width Reduced By 250 ~ 300mm)
Door Sealing Strip: High And Low Temperature Resistant Silicone Rubber Application: Home Appliance
High Light:

constant temperature humidity chamber

,

temp humidity chamber

Rapid Change Temperature Humidity Test Chamber For Home Appliance



Temperature Humidity Test Chamber APPLICATIONS



1. To simulate test environment with different temperature and humidity

2. Cyclic test includes climatic conditions: holding test, cooling-off test, heating-up test, moistening test and drying test…

3. Cable port with flexible silicone plug for cable routing to provide the condition of test unit under operation

4. Uncover test unit weakness in a short-term test with accelerated time effect



Temperature Humidity Test Chamber ADVANTAGES

1. The product has excellent performance and durability with reasonable price,can be customized according to the special needs of customers.
2. Independent product design, production, production in strict accordance with the process requirements, beautiful appearance.

3. Famous brands are adopted for key components to guarantee the performance and quality.

4. We company established a sound quality assurance system and complete after-sales service guarantee system.


Temperature Humidity Test Chamber FEATURE

1. International brand compressor and internationally renowned refrigeration accessories are adopted to ensure stable performance of the refrigeration system.
2. The inner box is made of SUS304# high-brightness mirror stainless steel.
3. The outer box adopts anti-rust treatment cold-rolled steel plate (spraying), with reasonable structure and elegant appearance.
4. Programmable touch controller
5. Multiple safety protection: refrigerant high pressure protection, compressor overload protection, over current protection, over temperature protection, leakage protection.
6. Brand new and perfect modeling design, high quality appearance.Low noise design, can be connected to computer.
7. The glass window is equipped with high-brightness fluorescent lamp, allowing the user to observe the conditions inside the test chamber at any time.

Temperature Humidity Test Chamber TECHNICAL PARAMETERS



Model TZ-HW80 TZ-HW150 TZ-HW225 TZ-HW408 TZ-HW1000
Internal Volume(L) 80L 150L 225L 408L 1000L
Dimensions Studio Size(mm) 400*400*500 500*500*600 500*600*750 600*800*850 1000*1000*1000
Standard Machine Size(mm) 900*902*1350 1005*995*1465 1050*1100*1700 1100*1350*1750 1500*1500*1900
Small Vertical External Size(mm) 1000*750*1650 1100*850*1750 1200*950*1850 / /
Structure Combined structure (If the door is not wide enough, small size is available, width reduced by 250 ~ 300mm)
Standard Weight (Kg) About 280 About 280 About 300 About 500 About 800
Performance Test Environment Conditions Environment temperature+25ºC,Relative humidity≤85%,No sample in test chamber.
Corresponding Standard

GB/T 5170.2-1996 "Method for verification of basic parameters of

environmental test equipment for electric and electronic products"

Test Method Completely stationary test mode for the object to be measured.
This method is the first choice for testing, research and semiconductor
screening of electronic components.
Parameters Control Methods Balanced temperature and humidity control mode(BTHC) PID Intelligent Adjustment
Temperature Range -40ºC~+150ºC -70ºC~+150ºC
Humidity Range 20%~98%R.H (0%~100% R.H can be customized)
Heating Rate 1-2ºC/min (Linear Adjustment 3-5℃/min can be Customized)
Cooling Rate 0.7ºC-1ºC/min (Linear Adjustment 3-5℃/min can be Customized)
Uniformity Temperature: ±1.5ºC Humidity: ±2.5%R.H
Fluctuation Temperature: ±0.5ºC Humidity : ±2%R.H

Temperature

Calibration

Point

+23 °C and +80 °C



Temperature Humidity Test Chamber Details

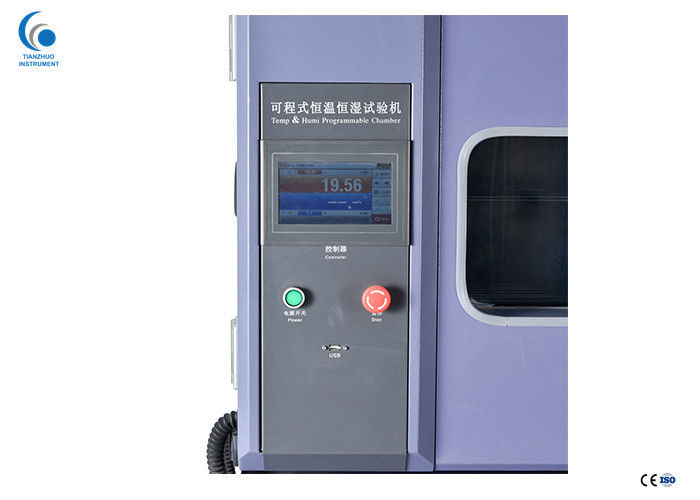

Rapid Change Temperature Humidity Test Chamber For Home Appliance 0
