Detailed Product Description
Dimension (mm): 780×780×1100 Indication Error (mm): E1XY=(2.5+L/100)
Apply For: Plastic Industry Feature: High Precision
Item: Digital Profile Projector Total Power: 400W
Highlight:

optical profile projector

,

vertical optical comparator

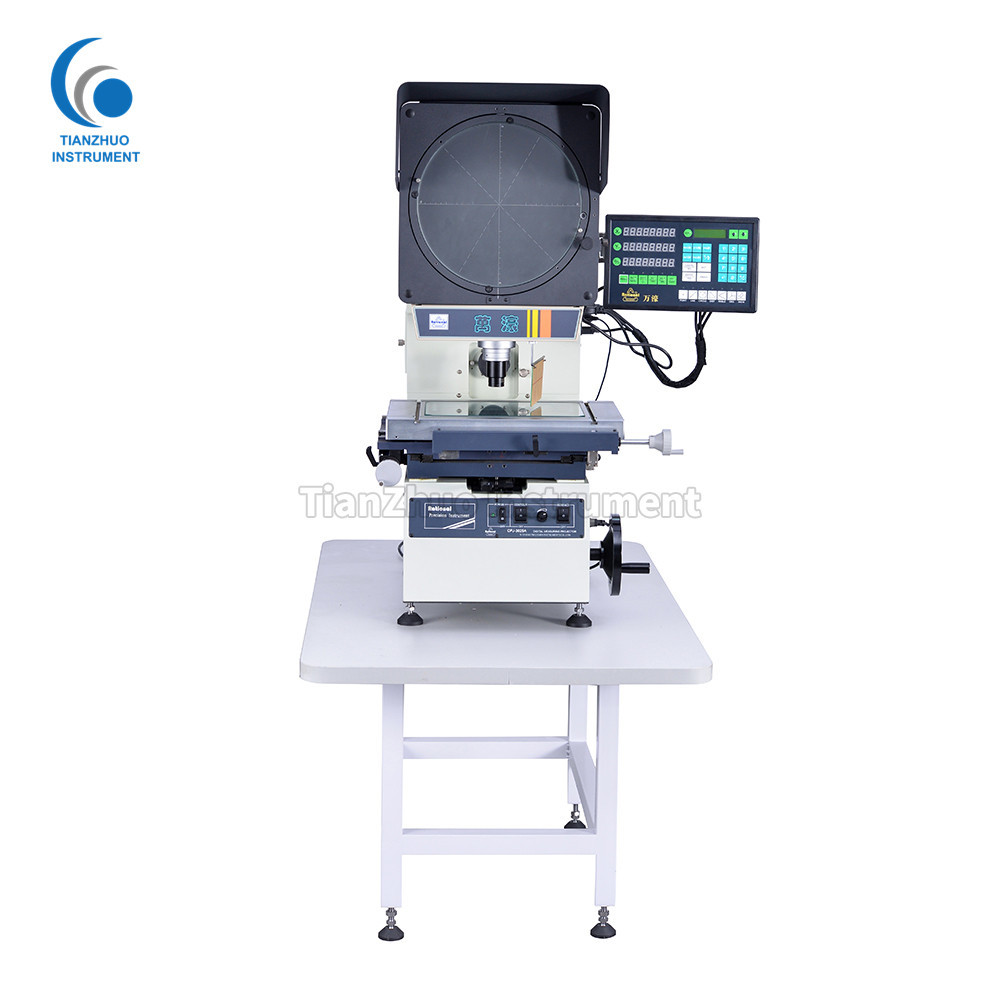

High Precision Digital Profile Projector for Plastic Industry (CPJ-3040A/AZ Series)



Optical Comparator Used Vertical Profile Projector precise and excellent non-contact optical measuring instrument integrated with the technology of optic, mechanic, electricity and computer. It is widely used at the field of mechanism, instrument, electronic, rubber industry for quality control, it can inspect all kinds of surface and outline of complicated work-pieces, such as, cam, screw thread, gear, perform milling cutter and so on, and it is an effective metrical and analytic system for education, research institute and lab.



PRODUCT BRIEF

CPJ-3000A/AZ series digital profile projector is an economic and reliable measuring instrument with premium quality.

This instrument is equipped with foot-switch and multi-functional data processing system, which is convenient to output data and sample, enabling the user to effectively and sufficiently inspect the measured objects.

This instrument, which integrates optics, machinery and electronics, is able to sufficiently carry out direct measurement and comparative measurement for measured workpiece, such as stamping parts, gear, thread, and milling cutter, etc.

It is widely used in the fields of machine manufacturing, electronics, mold, meter, etc.



FEATURES

1. High precision with foot switch and multifunctional data processing meter

2. Easy to operate

3. Resolution of linear scale: 0.5um

4. Powerful Digital Readout to support easy and accurate measurement

5. Reliable and cost-effective

6. Precise and accurate

7. Low maintenance cost

8. Optional Proprietary software



SPECIFICATIONS



Model Reverse
Erect
CPJ-3040A
CPJ-3040AZ
X-axis Travel (mm) 400
Y-axis Travel (mm) 300
Metal Table Size (mm) 606×466
Glass Table Size (mm) 450×350
Resolution (μm) 0.5
Indication Error (mm) E1XY=(2.5+L/100)
Z-axis Travel (mm) 100 (focusing)
Dimension (mm) 780×780×1100
Projection Screen Size (mm) ∅312
Rotary Range 0~360°
Resolution 1' or 0.01°
Lens Information Magnification 10× (Optional) 20× (Optional) 50× (Optional) 100× (Optional)
Field Of View (mm) ∅30 ∅15 ∅6 ∅3
Working Distance (mm) 77.7 44.3 38.4 25.3
Max. Measuring Height (mm) 90 90 90 90
Power Supply: AC 100-240V 50/60Hz. Total Power: 400W
