Product Details:
Place of Origin: Guangdong, China
Certification: CE Complied
Model Number: G Series
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden case outside with pallet, in total 1-2CBM
Delivery Time: 5-7 working days
Payment Terms: L/C, T/T, Western Union, , MoneyGram
Supply Ability: 500 sets/ month
Contact Now
Detailed Product Description
Apply For: 2D Measurement Series: G Series
Type: Manual Other Name: Precision Measuring Machine
Z-axis Travel (mm): 150 (can Be Customized To 400) Object View: 8.1mm~1.3m
High Light:

video measuring system

,

length measuring machine

Manual Video Measuring Machine G Series

This product has its unique design philosophy and strong independent research and development software, and it is easy for operation, suitable for dimensional measurement of batch precision components.


PRODUCT INTRODUCTION


Applied mainly for 2D measurement and can support some specific 3D measurement as necessary, this instrument is a high precision and high efficiency measuring machine with good quality and reliability.

Widely used in the field of machinery, electronics, instrument, meter, watch, light industry, plastics as well as measuring chambers, laboratories of institutes and universities, research institutes, metrological verification departments and workshops, etc.


FEATURES


1. Varieties of lighting solutions to meet various or specific requirements of customers.
2. Effectively support data processing, data display, data input, and data output
3. Linear scales supports the resolution of 0.5um

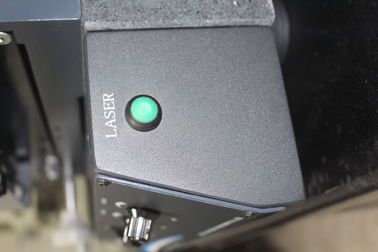

4. Detects the measured workpiece's specific location by laser indicator, which is convenient to position and operate.
5. Foot-switch is matched with measuring software, which makes operation easier.


SPECIFICATIONS



Working table Model VMS-1510G VMS-2010G VMS-2515G VMS-3020G VMS-4030G
Metal table size (mm) 354×228 404×228 450×280 500×330 606×466
Travel (mm) 150×100 200×100 250×150 300×200 400×300
Z-axis travel (mm) 150 (can be customized to 400)
Consistency error of origin in different sections E0≤30 (every 100mm displacement in Z axis);
Linear scale resolution: 0.0005mm. X, Y-axis indication error: (2.5+L/100)μm (L is the length of the measured object. Unit: mm)

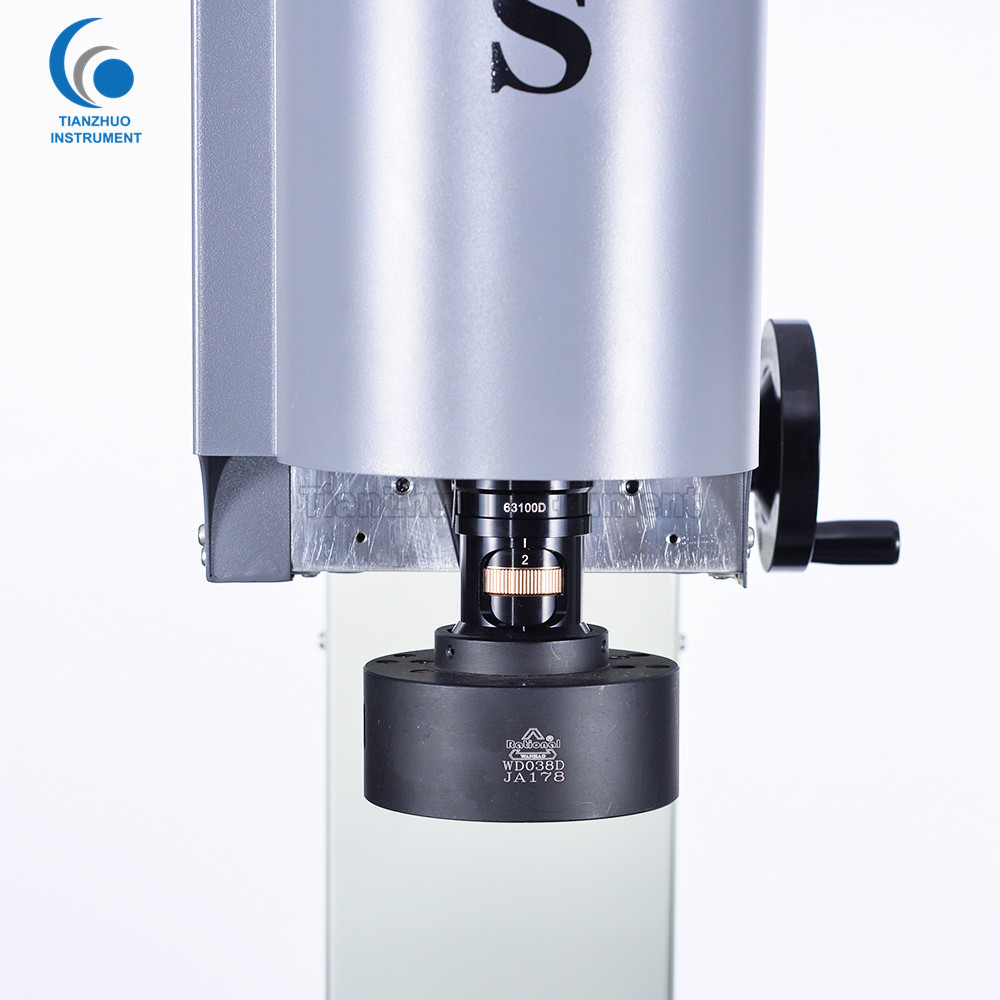

Video system 1/3"color CCD camera
Auto zoom lens magnification: 0.7X~4.5X
Magnification: 26.6~171X
Object view: 8.1mm~1.3m
Surface lighting and transmission lighting both adopt adjustable LED



PRODUCT PHOTO



8.1mm - 1.3m View Digital Measuring Machine High Precision Measuring Machine 0

8.1mm - 1.3m View Digital Measuring Machine High Precision Measuring Machine 1
