Place of Origin: | Guangdong, China |
Certification: | CE Complied |
Model Number: | S205 |
Minimum Order Quantity: | Negotiable |
---|---|
Price: | Negotiation |
Packaging Details: | Wooden case outside with pallet, in total 1-2CBM |
Delivery Time: | 5-7 working days |
Payment Terms: | L/C, T/T, Western Union, , MoneyGram |
Supply Ability: | 500 sets/ month |
Item: | Key Witch Load Testing Machine | Feature: | High Precision |
---|---|---|---|
Minimum Resolution: | 0.01g | Maximum Measured Stroke: | 100mm |
Minimum Display Stroke: | 0.01mm | Power Source: | 220V |
High Light: | keyboard key tester,keyboard switch tester |

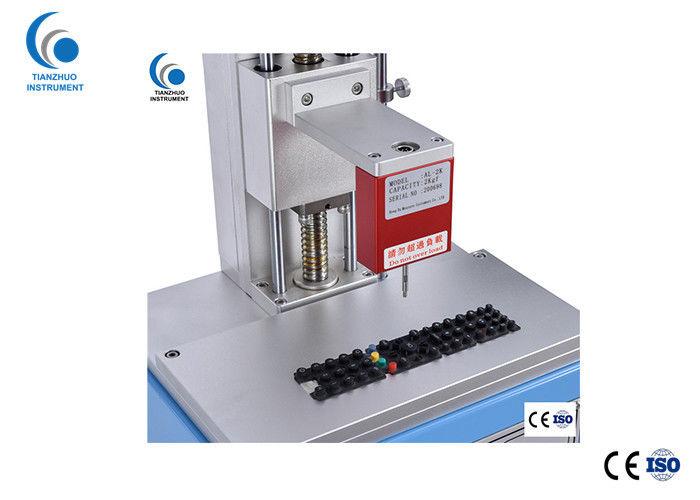

High Precisio Keystroke Tester , Keyboard Buttons Key Witch Load Testing Machine
Keystroke Tester Introduction:
This machine is suitable for pressing force test and rebounding force test of keyboard buttons, keystokes, buttons of all kinds of electronic product. Such as rubber, metal domes, key-press, switch, computer key-board etc to do[load-stroke] curve test and accomplish downforce, reboundforce tests. Adopt Windows Xp window program , easy to operate, storing test materials automatically: load-stroke curve, life decline curve, test result, moreover the test method can be preserved and adjusted.
This machine adopt high precision load cell & servo motor for driving, can get accurate force testing date, widely used for button supplier and quality control agent.
Keystroke Tester Specifications:
NO | Item | parameter |
1 | Test maximum load | 50kg |
2 | Minimum resolution | 0.01g |
3 | Maximum measured stroke | 100mm |
4 | Minimum display stroke | 0.01mm |
5 | Measurement speed range | 0 -300mm/min |
6 | Machine drive mechanism | ball screw |
7 | Machine drivedrive the motor | drive the motor |
8 | Machine size | 300*270*500(W*D*H) mm |
9 | Machine weight | 31kg |
10 | Power source | 220V |
Product Features:
Details
