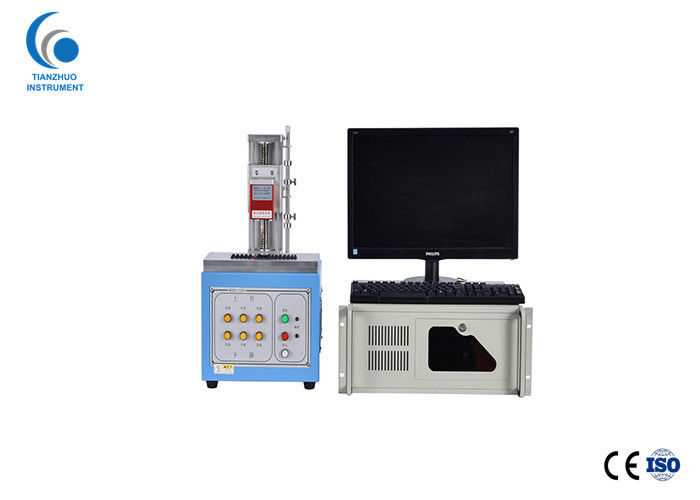

Industrial Keyboard Buttons Machine , Automatic CNC Load Curve Tester

Product Details:

Place of Origin:	Guangdong, China
Certification:	CE Complied
Model Number:	S205

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiation
Packaging Details:	Wooden case outside with pallet, in total 1-2CBM
Delivery Time:	5-7 working days
Payment Terms:	L/C, T/T, Western Union, , MoneyGram
Supply Ability:	500 sets/ month

Contact Now

Detailed Product Description

Item:	CNC Load Curve Tester	Machine Drive Mechanism:	Ball Screw
Minimum Resolution:	0.01g	Maximum Measured Stroke:	100mm
Minimum Display Stroke:	0.01mm	Type:	Keyboard Buttons Machine
High Light:	keyboard key tester , load testing machine

Industrial Keyboard Buttons Machine , Automatic CNC Load Curve Tester

Product Introduction:

This machine is applies to all kinds of rubber buttons, metal buttons and switches for shrapnel(load displacement) curves,while under pressure to complete the rebound test. Chinese window using Windows

programs,the operation is simple,automated storage test data(load-displacement curve,life decay curve,

the test results),and all test conditions can be stored.The machine adopts the high precision load cell

measurement and servo motor drive can be accurately measured the detection equipment.

Specifications:

NO	Item	parameter
1	Test maximum load	50kg
2	Minimum resolution	0.01g
3	Maximum measured stroke	100mm
4	Minimum display stroke	0.01mm
5	Measurement speed range	0 -300mm/min
6	Machine drive mechanism	ball screw
7	Machine drivedrive the motor	drive the motor
8	Machine size	300270500(WDH) mm
9	Machine weight	31kg
10	Power source	220V

Product Features:

Test conditions can be set by computer and stored.Set by the drop-down menu or enter data directly.
The upper and lower limit specification values can be input for the test items, and the test results can be determined as OK or NG automatically;
The known trip can test the corresponding load, or the known load can test the corresponding trip;
Life curves of load decay can be derived after testing;
Load cursors and resistance cursors check load at any position on the curve at any time;
The contents of the header of the inspection report can be modified at any time (both in Chinese and English);

Details

Industrial Keyboard Buttons Machine , Automatic CNC Load Curve Tester 0
