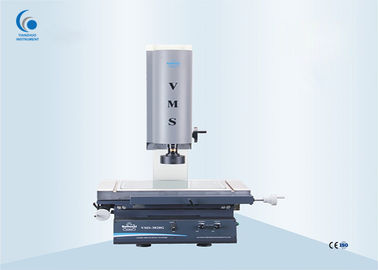

Molded Parts Length Measuring Machine , 2D Video Measurement System

Molded Parts Length Measuring Machine , 2D Video Measurement System

  • Molded Parts Length Measuring Machine , 2D Video Measurement System
Molded Parts Length Measuring Machine , 2D Video Measurement System
Product Details:
Place of Origin: Guangdong, China
Certification: CE Complied
Model Number: WVMS-2515G
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Price: Negotiation
Packaging Details: Wooden case outside with pallet, in total 1-2CBM
Delivery Time: 5-7 working days
Payment Terms: L/C, T/T, Western Union, , MoneyGram
Supply Ability: 500 sets/ month
Contact Now
Detailed Product Description
Name: Video Measuring Machine Application: Molded Parts
Travel (mm): 250×150 Camera: 1/3”color CCD Camera
Auto Zoom Lens Magnification: 0.7X~4.5X Magnification: 26.6~171X
Object View: 8.1mm~1.3m Power: AC 100-240V 50/60Hz
High Light:

length measuring machine


computer measuring machine

Dimension Measurement WVMS-2515G Optical Metrology Equipment For Molded Parts


Length Measuring Machine​ FEATURES:


1. Various forms of light source, ensure to meet the diversity of measurement needs.

2. Height auxiliary measurement can be achieved.

3. Effectively support data processing, data display, data input, and data output.

4. Detects the measured workpiece’s specific location by laser indicator, which is convenient to position and operate.

5. Foot switch and software cooperate, easier to operate

6. Linear scales supports the resolution of 0.5μm.


Length Measuring Machine​ Details


This instrument is a high precision and high efficiency measuring machine.electronics, instrument, meter, watch, light industry, plastics as well as measuring chambers, laboratories of institutes and universities, research institutes, metrological verification departments and workshops, etc.

Applied mainly for 2D measurement and can support some specific 3D measurement as necessary.


Length Measuring Machine​ SPECIFICATIONS:


Model WVMS-2515G Length Measuring Machine​
Metal table size (mm) 450×280
Travel (mm) 250×150
Video System 1/3”color CCD camera
Auto zoom lens magnification: 0.7X~4.5X
Magnification: 26.6~171X
Object view: 8.1mm~1.3m
Surface lighting and transmission lighting both adopt adjustable LED
Linear scale resolution: 0.0005mm. X, Y-axis indication error: (2.5+L/100)μm (L is the length of the measured object. Unit: mm)
Consistency error of origin in different sections E0≤30 (every 100mm displacement in Z axis)
Z-axis travel (mm) 200 (can be customized to 400)


Length Measuring Machine​ Application:


It is widely used in the fields of machine, electronics, instrument, plastic and so on.


Length Measuring Machine​ Details


Molded Parts Length Measuring Machine , 2D Video Measurement System 0
