Home ProductsVertical Profile Projector

Reverse Vertical Profile Projector Vision Coordinate Measuring Dimension Measurement

Reverse Vertical Profile Projector Vision Coordinate Measuring Dimension Measurement

  • Reverse Vertical Profile Projector Vision Coordinate Measuring Dimension Measurement
Reverse Vertical Profile Projector Vision Coordinate Measuring Dimension Measurement
Product Details:
Place of Origin: Guangdong, China
Certification: CE Complied
Model Number: CPJ-3010(Reverse)
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Price: Negotiation
Packaging Details: Wooden case outside with pallet, in total 1-2CBM
Delivery Time: 5-7 working days
Payment Terms: L/C, T/T, Western Union, , MoneyGram
Supply Ability: 500 sets/ month
Contact Now
Detailed Product Description
Name: Vertical Profile Projector The Metal Table’s Size: 306 X152 Mm
The Glass table’s Size: 175x100 Mm X-axis Travel: 100mm
Y-axis Travel: 50mm Z-axis Travel: 90 (for Focus)
High Light:

digital profile projector

,

optical profile projector

China Manufacturer Vision Coordinate Measuring Dimension Measurement VMS-1510G



Vertical Profile Projector ​FEATURES:



1. It can inspect all kinds of surface and outline of complicated work-pieces, cam, screw thread, gear, perform milling cutter and so on.

2. It's widely used in the trade of mechanism, meter, electricity, light industry, college, research institute and measurement department.

3. Measurement data can output and connect printer and computer.



Vertical Profile Projector INTRODUCTION:



Vertical Profile Projector is a set of optical, mechanical, electrical, computer integration, high precision optical measuring instruments.

Efficiently detect a variety of complex shape the contours of the work piece size and surface status, such as templates, punching pieces, cams, threads, gears, form cutter and other tools, cutting tools and other parts.



Vertical Profile Projector SPECIFICATIONS:



Model CPJ-3010(Reverse)
Table The metal table’s size 306 x152 mm
The glass table’s size 175x100 mm
X-axis travel 100mm
Y-axis travel 50mm
Z-axis travel 90 (for focus)
X, Z-axis digital display resolution , ≤ (3 + L/200) μm 0.0005mm
coordinate indication error (2.5 + L/75) μm
Projector screen Screen size (mm) Ø 312 Used range>Ø 300(with the meter line)
Screen rotary rang 0°~360°
Rotation digital resolution 1′or 0.01°
Lens Magnification

10 X

(Option)

20X

(Option)

50X

(Option)

100X

(Option)

Working distance(mm) 77.7 44.3 38.4 25.3
Field of view in object(mm) Φ30 15 Φ6 Φ3
Max.workpiece height(mm) 80 80 80 80
Data Processing System DC-3000 multi-function data processing system, appearing in English ,can be used to gather the data and measure the point , line, circle, angle and distance.
Size (L×W×H) 770×550 × 1100
Weight 125kg
Options Micro-printer, optical Edge Detector, M2D software; detailed description see Annex projector.
Power 110V-240V(AC), 50/60HZ, Total power=400W



Vertical Profile Projector Application:



This profile projector is widely used in machinery, molds, tools, instruments, electronics, light industry, measuring rooms and workshops are essential for a kind of test measurement equipment.



Vertical Profile Projector Details

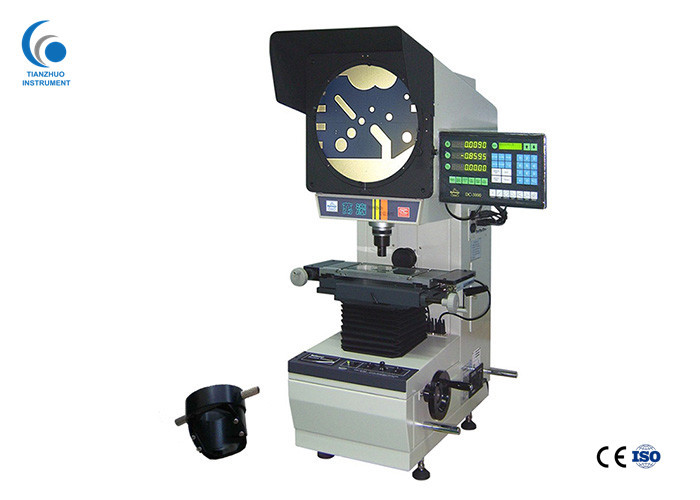

Reverse Vertical Profile Projector Vision Coordinate Measuring Dimension Measurement 0

Reverse Vertical Profile Projector Vision Coordinate Measuring Dimension Measurement 1
