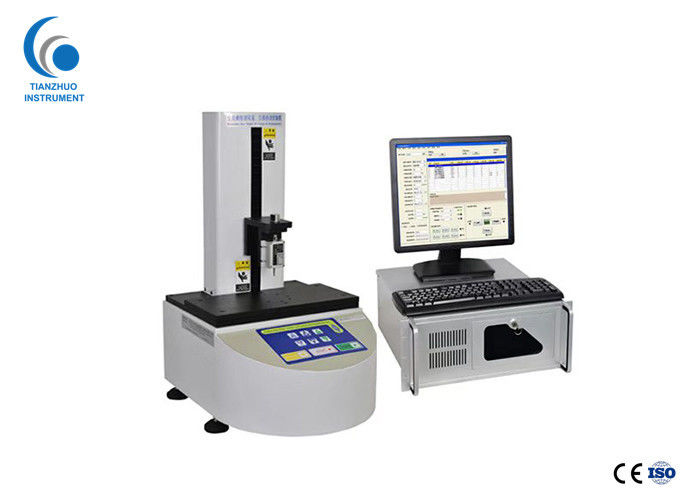

Rubber Key Curve Keystroke Tester With High Precision Motor Drive

Minimum Order Quantity:	Negotiable
Price:	Negotiation
Packaging Details:	Wooden case outside with pallet, in total 1-2CBM
Delivery Time:	5-7 working days
Payment Terms:	L/C, T/T, Western Union, , MoneyGram
Supply Ability:	500 sets/ month

Contact Now

Detailed Product Description

Item:	Key Curve Keystroke Tester	Feature:	High Precision
Minimum Resolution:	0.01g	Maximum Measured Stroke:	150mm
Minimum Display Stroke:	0.01mm	Drive:	Motor Drive
High Light:	keyboard key tester , keyboard switch tester

Rubber Key Curve Keystroke Tester With High Precision Motor Drive

Application

Rubber key curve test

Spring & key curve test

Keyboard & mobile keystoke curve test

Switch curve test

Buttons and switches ( load - stroke ) curve test

Specifications:

NO	Item	parameter
1	Test maximum load	50kg
2	Minimum resolution	0.01g
3	Maximum measured stroke	150mm
4	Minimum display stroke	0.01mm
5	Measurement speed range	0 -300mm/min
6	Machine drive mechanism	ball screw
7	Machine drivedrive the motor	drive the motor
8	Machine size	440340560 (WDH) mm
9	Machine weight	31kg
10	Power source	220V

Product Features:

Test conditions can be set by computer and stored.Set by the drop-down menu or enter data directly.
Peak, Bottom, Peak, Bottom, Distance and Click can be directly displayed on the graph without manual calculation.
The graphs are memorized by the computer and can be zoomed in and out at any time. A piece of A4 paper can be used to place 24 graphs at will.
The upper and lower limit specification values can be input for the test items, and the test results can be determined as OK or NG automatically;
The known trip can test the corresponding load, or the known load can test the corresponding trip;
Life curves of load decay can be derived after testing;
Load cursors and resistance cursors check load at any position on the curve at any time;
The contents of the header of the inspection report can be modified at any time (both in Chinese and English);

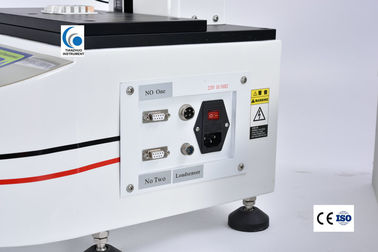

Details

Rubber Key Curve Keystroke Tester With High Precision Motor Drive 0
